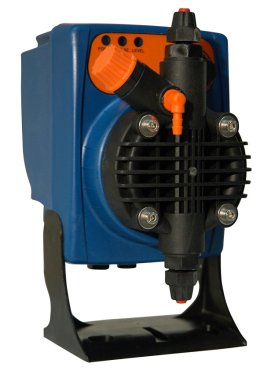

Dozavimo siurblys PKX MA/A 0505 230V Etatron D.S.

Gamintojas: ETATRON
Prekės kodas: PKX0103901
Šāda kombinācija neeksistē
185.00
223.85

This new range of solenoid dosing pumps distinguishes this new product from competitors copies in the market thanks to its simplicity of use, high reliability and quality and its overall compact dimensions. The PKX range, thanks to its characteristics and for its versatility is the ideal pump for the dosing of chemical products in many application sectors among which: swimming pools, car washing, water treatment, wash-ware, etc.

The main characteristics of the PKX range are:

  • IP 65 reinforced PP housing
  • Manual air bleed pump head
  • Floating level switch (upon request for MA/A model)
  • Small size
  • Wall or foot mounting option
  • Flashing led under working conditions
  • Extra silent version available upon request
  • Level control setting (supplied without probe): -/M Series (-/AD Series upon request)
  • Standard power supply: 230V - 50/60Hz, 24V 50/60Hz, 24VDC, 12VDC
Rodyti visą aprašymą

Equipment technical data

Unit

Model

1-5

2-6

5-5

7-2

10-1

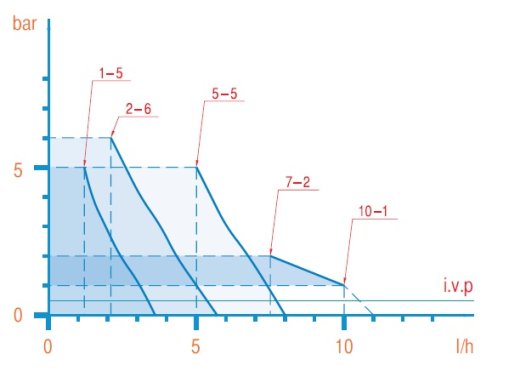

Maximum flow rate

l/st

3.5

5.7

8.0

11.0

11.0

Nominal flow rate

l/st

1

5

5

7

10

Maximum pressure

bar

5

6

5

2

2

Maximal imp./min.

120

Discharge amount per jet

ml

0.14

0.28

0.69

0.97

1.39

Jet lenght

mm

0.8

0.8

1.1

1.3

1.3

Suction height

m

2

2

2

2

2

Electric connection

Volti;

Hz

230V; 50-60Hz

Power

V

32

Voltage

A

0.14

Weight

kg

1.9



Svorio kg

2.40
