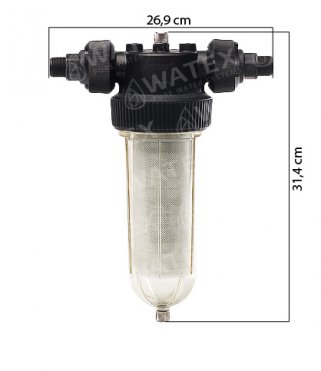

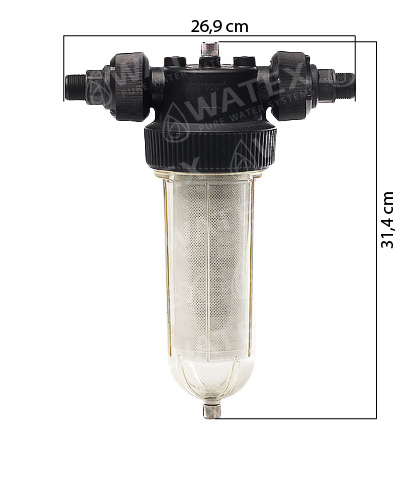

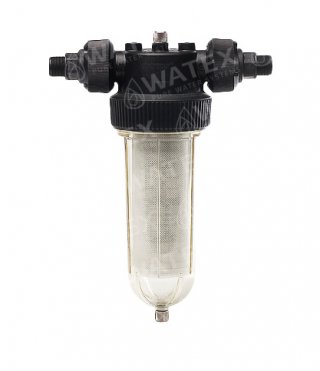

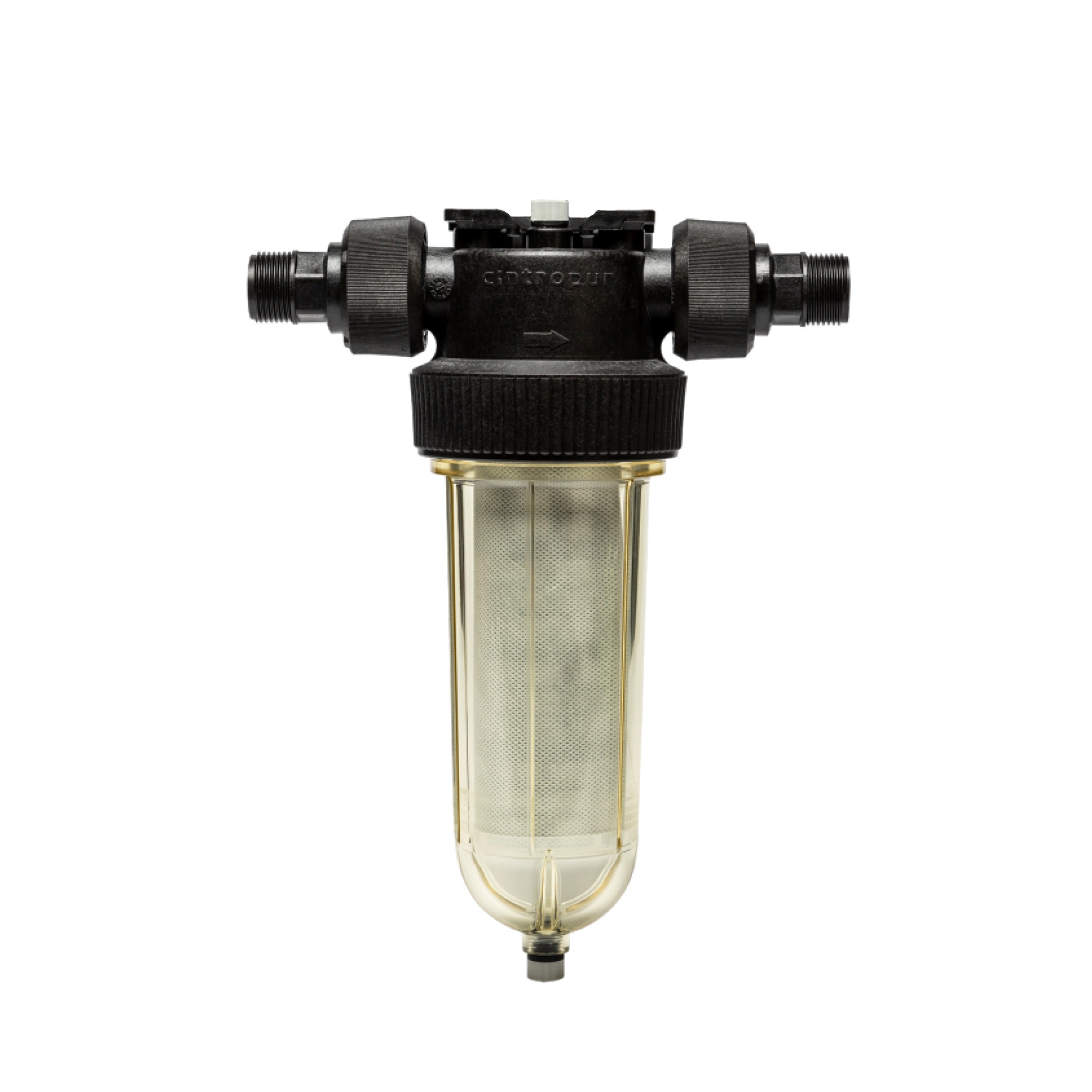

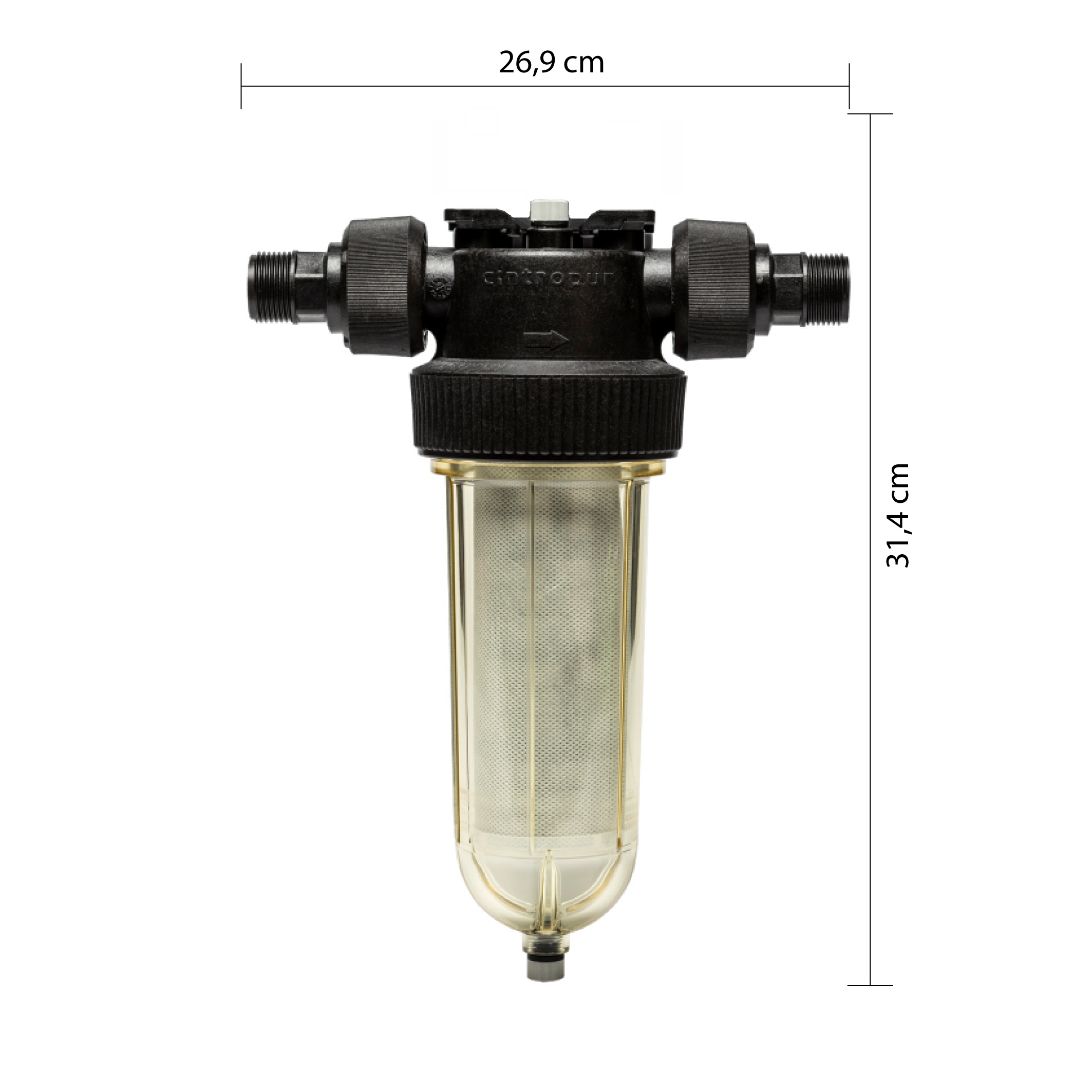

CINTROPUR vandens filtras NW25 (1'')

Gamintojas: CINTROPUR
Prekės kodas: FWCCNW250
Šāda kombinācija neeksistē
60.00
72.60

The brand CINTROPUR® offers a wide range of mechanical filters designed for filtering clear and slightly contaminated water. The residential range features 3 filters and is capable of serving flow rates from 0 up to 6.5 m³/h.

  • NW 18 : 3.5 m3/h (¾")
  • NW 25 : 5.5 m3/h (¾" + 1")
  • NW 32 : 6.5 m3/h (1¼")

Basic principle: filtering out solid particles (earth, sand, rust, etc,) suspended in the water.

Main advantages:

  • double stage of filtration (centrifugal flow thanks to the vane + filtering sleeve)
  • filtration practically without accumulation
  • low pressure drop
  • high and constant flow rate

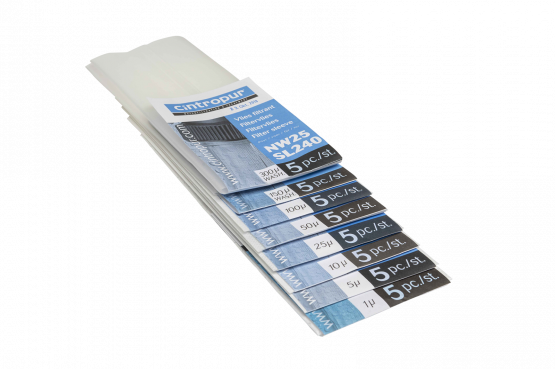

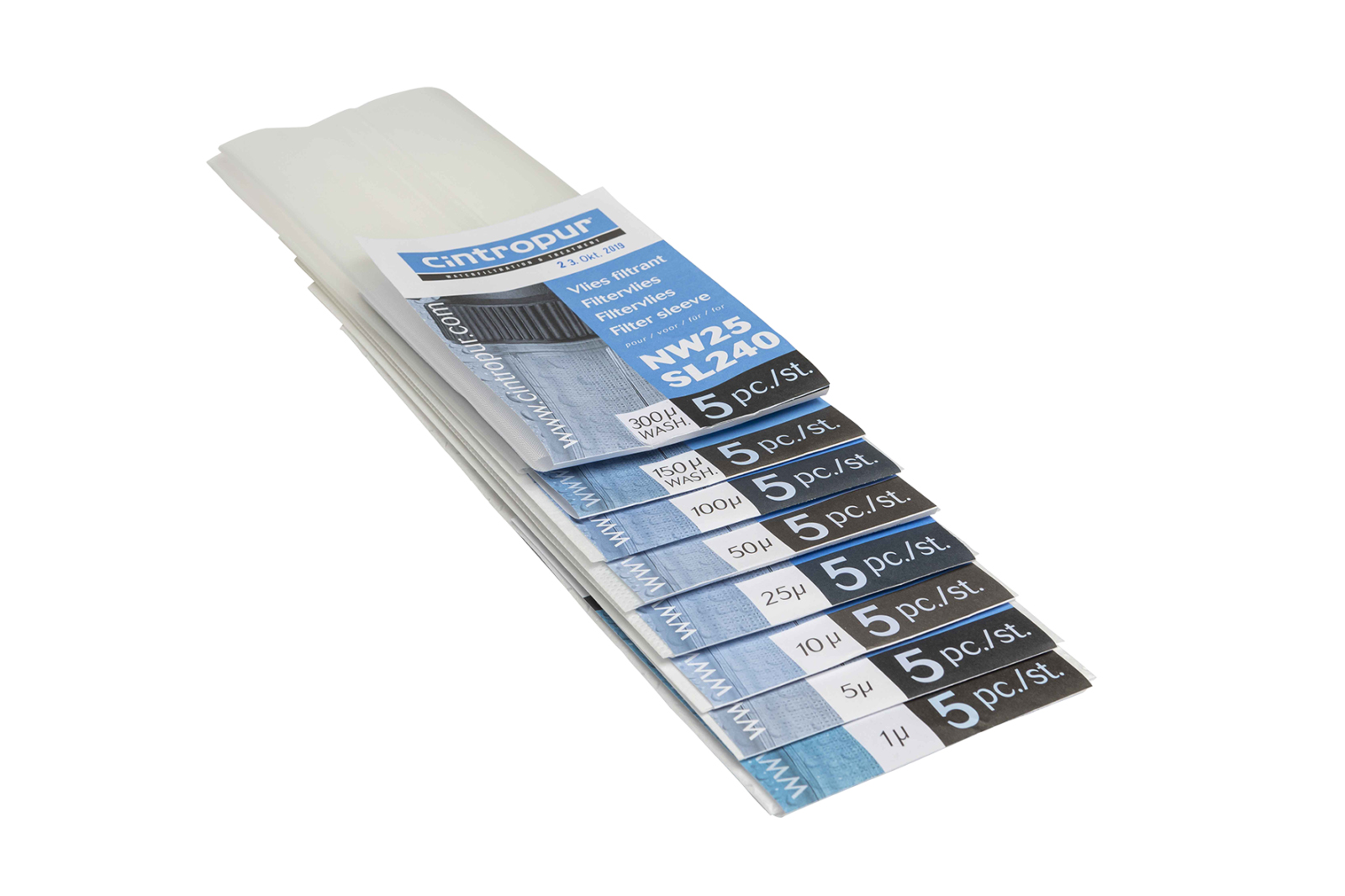

  • wide choice of filtering fineness ranging from 5 to 300 microns
  • sealing guaranteed thanks to the O-ring system
  • fast and easy rinsing thanks to the drain cock

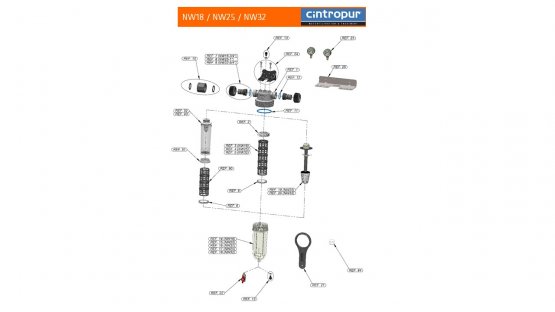

  • long lifetime and uninterrupted spare parts supply
  • reduced need for maintenance



Rodyti visą aprašymą

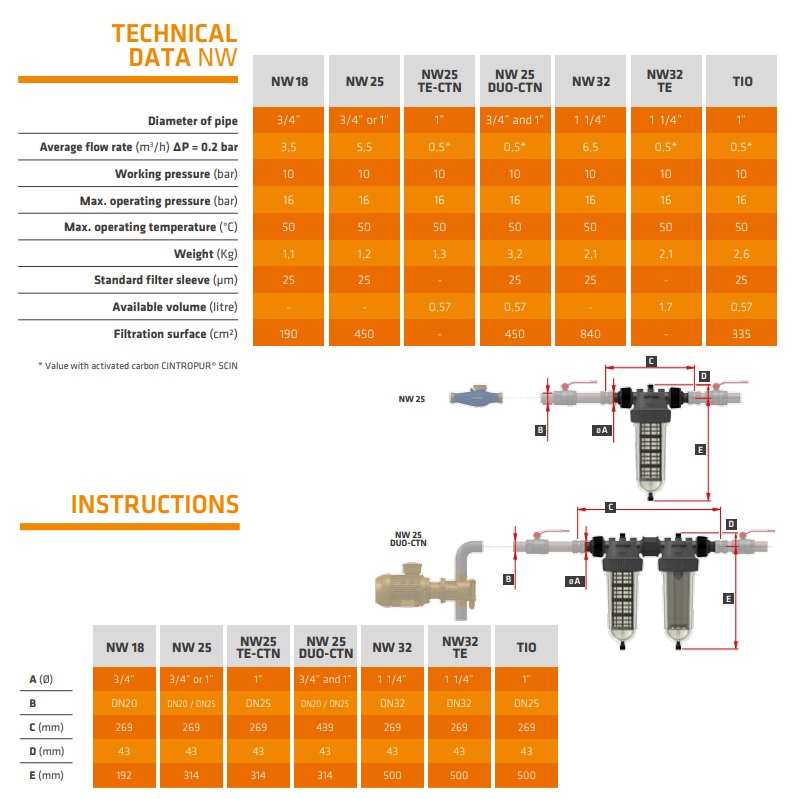

Technical data

Connection diameter

1"

Average flow rate  (m3/st)

5,5

Maximum operating temperature (to C)

50o

Weight (Kg)

1,2

Standard filter element fineness (µ)

25

Standard filter element fineness (cm2)

450

Filtration area (bar)

16
