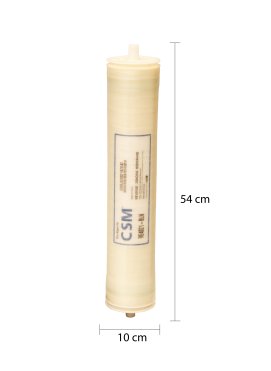

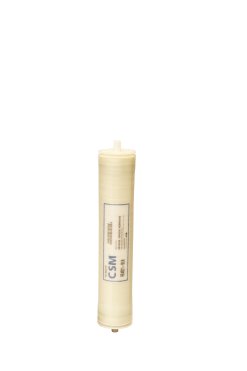

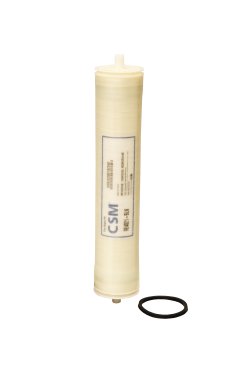

RO membrane CSM RE4021-BLN (1050GPD)

RE 4021-BLN

Low pressure grade RO element for brackish water

SPECIFICATIONS

General Features:

• Permeate flow rate: 1,050 GPD ( 4.0 m3/day)
• Nominal salt rejection: 99.2%
• Effective membrane area: 35 ft2 (3.3 m2)
• Мembrane type: Thin-Film Composite
• Membrane material: Polyamide(PA)
• Element configuration: Spiral-Wound, FRP Wrapping

APPLICATION DATA

Operating Limits:

• Max. Pressure Drop / Element - 15 psi (0.1 MPa)
• Max. Pressure Drop / 240” Vessel - 60 psi (0.41 Mpa)
• Max. Operating Pressure - 600 psi (4.14 MPa)
• Max. Feed Flow Rate - 13 gpm (2.95 m3/hr)
• Min. Concentrate Flow Rate - 3 gpm (0.68 m3/hr)
• Max. Operating Temperature - 113 oF (45 oC)
• Operating pH Range - 2.0–11.0
• CIP pH Range - 1.0–13.0
• Max. Turbidity - 1.0 NTU
• Max. SDI (15 min) - 5.0
• Max. Chlorine Concentration < 0.1 mg/L

Design Guidelines for Various Water Sources:

• Wastewater Conventional (SDI < 5) 8–12 gfd
• Wastewater Pretreated by UF/MF (SDI < 3) 10–14 gfd
• Seawater, Open Intake (SDI < 5) 7–10 gfd
• Seawater, Beach Well (SDI < 3) 8–12 gfd
• Surface Water (SDI < 5) 12–16 gfd
• Surface Water (SDI < 3) 13–17 gfd
• Well water (SDI < 3) 13–17 gfd
• RO permeate (SDI < 1) 21–30 gfd

Saturation Limits (Using Antiscalants) *:

• Langlier Saturation Index (LSI) <+1.5
• Stiff and Davis Saturation Index (SDSI) <+0.5
• CaSO 4 230% saturation
• SrSO4 800% saturation
• BaSO4 6,000% saturation
• SiO2 100% saturation

*The above saturation limits are typically accepted by proprietary antiscalant
manufacturers. It is the user’s responsibility to ensure proper chemical(s) and
concentration are dosed ahead of the membrane system to prevent scale
formation anywhere within the membrane system. Membrane elements fouled
or damaged due to scale formation are not covered by the limited warranty.
