Iron removal filter WATEX RCMB14x3

Manufacturer: WATEX

Product code: RCMB14x3

Price without VAT

€ 3,560.00

Price with VAT

€ 4,307.60

– +

In stock:

Delivery time: 2-5 working days

WATER QUALITY PROBLEM

Iron and manganese often causes the main problem of the waterworks. When water gets in contacts with air, it changes the colour, turbidity increases and sediments appears. Water has a metallic taste. Water pipes are clogged and sanitation at the consumer becomes dirty. Suggested concentration of iron should be 0.1 mg/l and manganese 0.05mg/l.

SOLUTION

The best solution for this problem is oxidation and sand filtration. WATEX RCTBx3 series filters are designed to purify water from turbidity, colourfulness, iron, manganese and odor for villages, cities and industrial enterprises. Mainly it is used for groundwater purification.

OPERATING PRINCIPLE

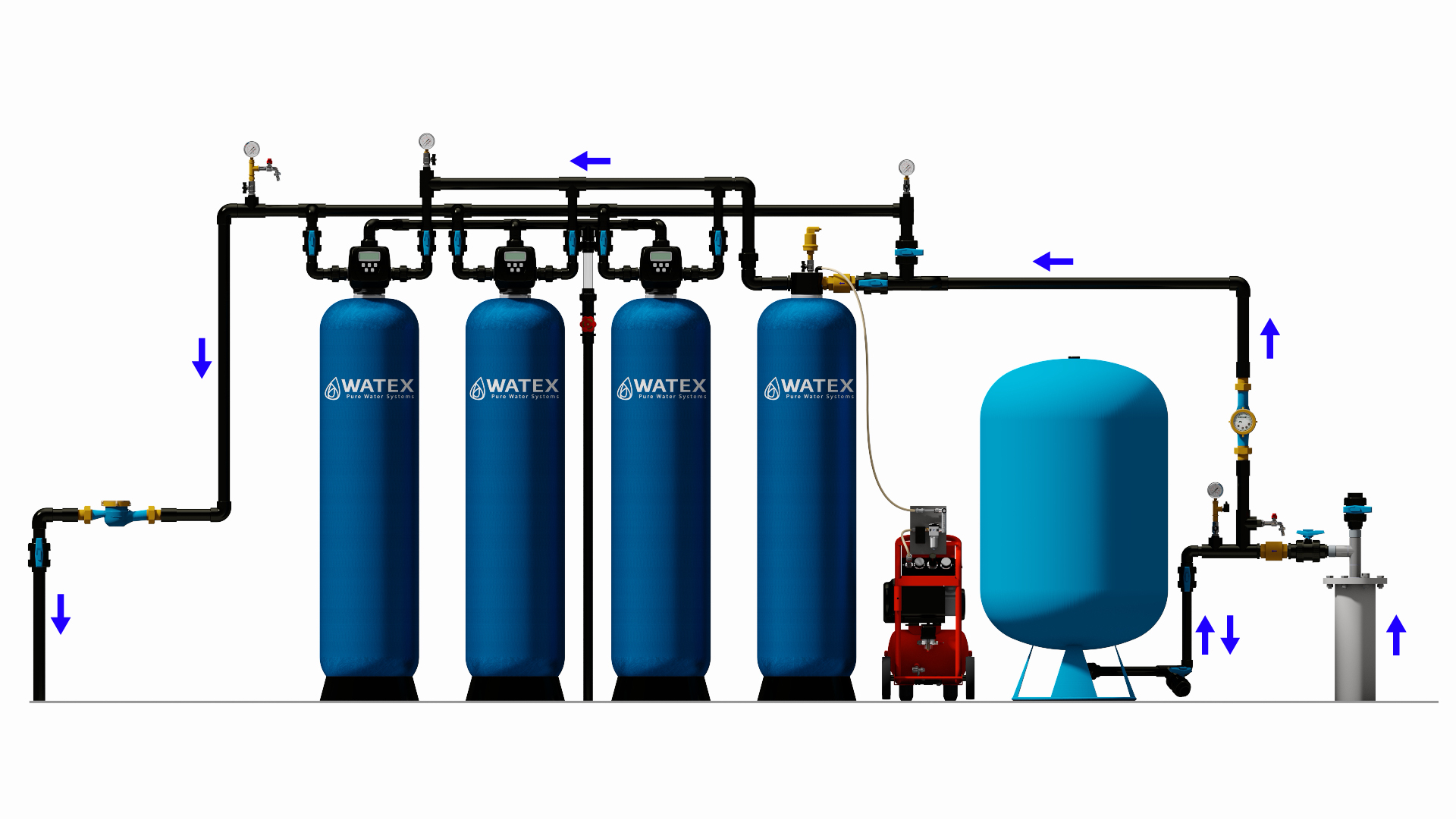

RCTBx3 filter operating principle is based on aeration and filtration. When water is aerated, iron, manganese and mechanical impurities form sediment, which can be filtered. Suspended solids are filtered through filtration media, which has been poured in to filter. Filters depending on pollution levels and water consumption have to be rinsed regularly. Filters after rinsing are regenerated and can purify water. Equipment consists from reactor and three filters.

Show full description

Technical parameters of equipment	Unit	Model
Technical parameters of equipment	Unit	RCMB14x3	RCMB16x3	RCMB18x3
Flow rate* Q_nom	m³/h	2.4	3.2	4.0
Flow rate** Q_maks	m³/h	3.6	4.8	6.0
The amount of water for regeneration ***	m³	0.41	0.53	0.66
Minimum flow rate for rinsing	m³/h	3.1	4.0	5.0
Pressure tank size (diameter)	inches	14	16	18
Pressure tank size (diameter)	m	0.36	0.41	0.46
Pressure tank volume	liters	145	183	237
The amount of filtering material	liters	97	122	158
Dimensions
Length	m	1.89	2.09	2.29
Width	m	0.36	0.41	0.46
Height	m	1.85	1.87	1.87
Water - drain connection	inches	1 ¼”	1 ¼”	1 ¼”
Filtration		Iron, manganese, turbidity, odor
Pressure tank material		FRP (fiberglass)
Filtration media		Aqua Mandix, silica sand 0.4x0.8 mm, 0.7x1.25 mm, 1x3 mm, 3x5 mm
Operating pressure	bar	2-6
Electric connection		220V, 50Hz, 1 phase
Electricity consumption	W	3 W

* Filtration speed 8 m/h

** Filtration speed 12 m/h

*** Backwash 8 min

PRECONDITIONS

Sewer and electricity 220V connection
Input water pressure with a minimum pressure of 2.5 bar
Room temperature above 0° C
Water temperature to 25° C
Correct system installation

SYSTEM MAINTANANCE

Filters will provide with good quality water if operating personnel will ensure proper air supply, and unnecessary air removal and regular rinsing processes. Water purification system does not require specific chemical admixtures that have to be refilled.

PRESSURE TANK

Pressure filter tanks are made from fiberglass with inner PE coating that can hold pressure up to PN10.

FILTRATION MEDIA

For water purification filtration media AquaMandix and quartz sand with different grain size (0.4-0.8 mm, 0.7-1.25 mm, 1-3 mm, 3-5 mm) is being used. Porous structure of AquaMandix provides a large active surface and provides efficient adsorption and accumulation of sediment.

CONTROL VALVE

The filter is equipped with an automatic Clack control valve which performs filtering and rinsing sequences automatically. Usually rinsing is performed at 2:00 at night.

AIR SUPPLY

For water aeration it is necessary to install air compressor. Air is injected in the water before it enters reactor.

ADDITIONAL EQUIPMENT OPTIONS:
