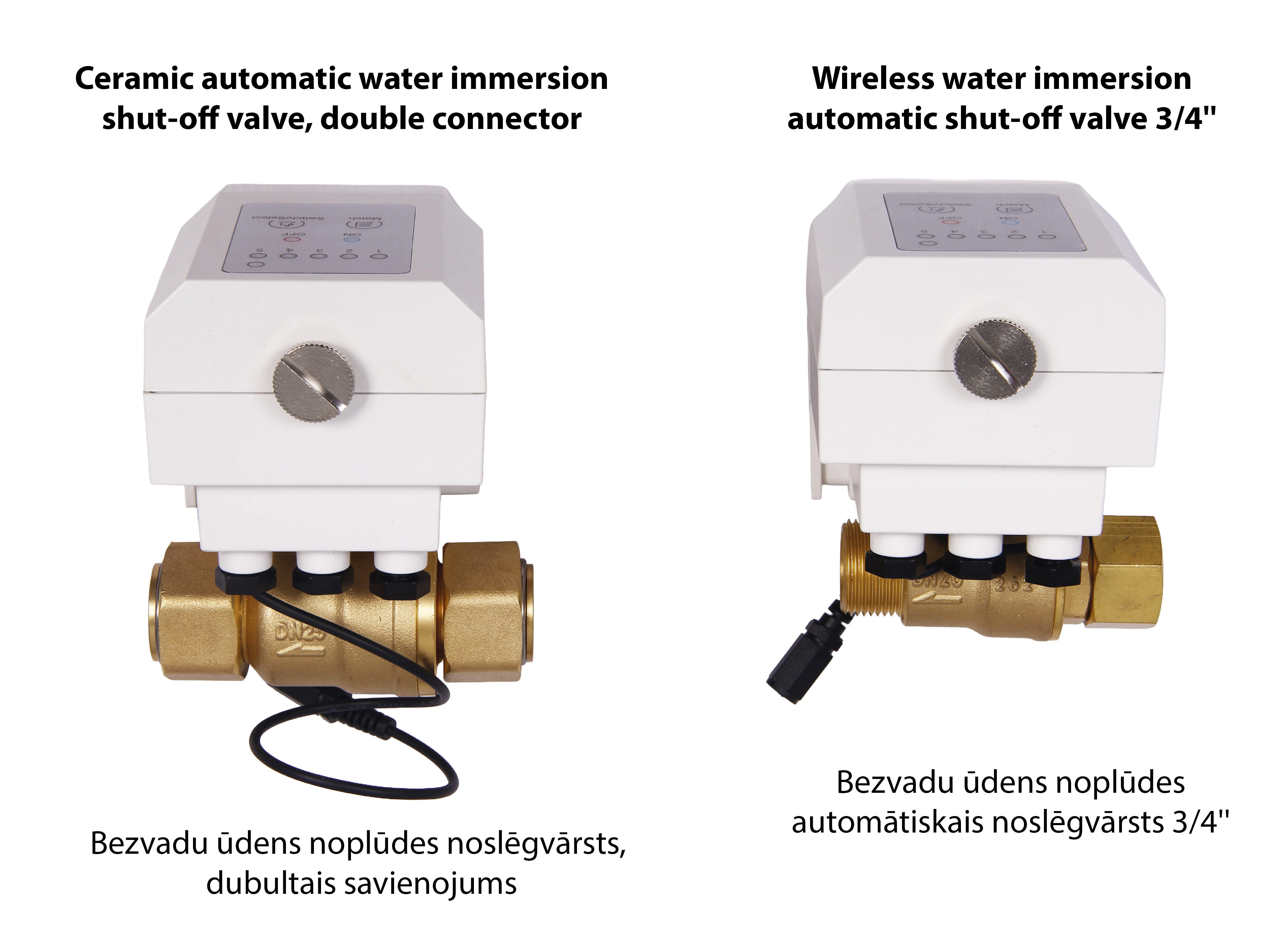

Wireless Water Leak Shut-Off Valve, Double Connection provides automatic protection against water damage caused by unexpected leaks. When the wireless sensor detects water, it sends a signal to the control unit and the valve automatically shuts off the incoming water supply.
The system is suitable for homes, offices, commercial premises and technical areas. It can be installed as additional protection for water supply systems, filtration equipment, household appliances and other installations where an unnoticed leak could result in significant damage.
Automatic response to water leaks
Even a relatively small leak can cause serious damage if it remains unnoticed. Loose fittings, damaged hoses, worn connections or faults in water-connected equipment may allow water to escape for an extended period of time.
The wireless shut-off system is designed to react automatically. The sensor is placed close to a potential leakage point or in an area where water is likely to collect first. When water reaches the sensor probes, a wireless signal is transmitted to the valve control unit and the water supply is shut off.
This helps limit the amount of escaping water and reduces the risk of damage to floors, walls, furniture, equipment and surrounding installations.
Key features
How the system works
During normal operation, water flows through the valve as usual. The wireless sensor continuously protects the selected area without requiring a physical signal connection to the valve.
If water reaches the detection probes, the sensor registers the presence of water and transmits a signal to the control unit. The valve then closes automatically, stopping the incoming water supply without requiring immediate manual intervention.
For effective detection, the sensor should be positioned close to the potential source of leakage and preferably at a low point where escaping water is likely to collect first.
Suitable installation areas
The system can provide additional protection in many locations, including:
The possibility of using several wireless sensors makes the system particularly useful where multiple potential leakage points need to be protected by one shut-off system.

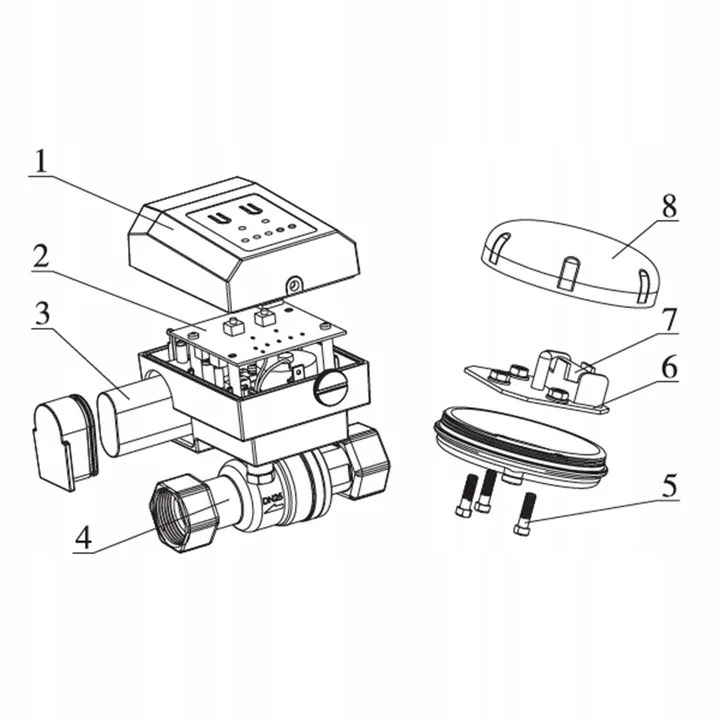

System components
The system combines the components required for leak detection, valve control and automatic water shut-off:
Additional protection for the water installation
The Wireless Water Leak Shut-Off Valve, Double Connection does not prevent a hose, fitting or appliance from developing a leak. Its purpose is to respond quickly once water is detected and automatically limit further water flow.
This makes it a practical additional safety measure for residential, commercial and technical water installations, particularly in areas where leaks may otherwise remain unnoticed for a long time.
Regularly checking the sensor battery, wireless communication and valve operation helps ensure that the system remains ready to respond when required.
Show full description| Parameter | Value |
|---|---|
| Product type | Automatic anti-flooding system / water shut-off valve |
| Model | F104I |
| Connection size | G1" |
| Valve type | Ceramic core ball valve |
| Flood sensor | Wireless |
| Maximum number of supported sensors | Up to 5 |
| Power input | 100–240 VAC |
| Power output | DC12V |
| Battery | 2500 mAh / 7.4 V – rechargeable lithium battery |
|

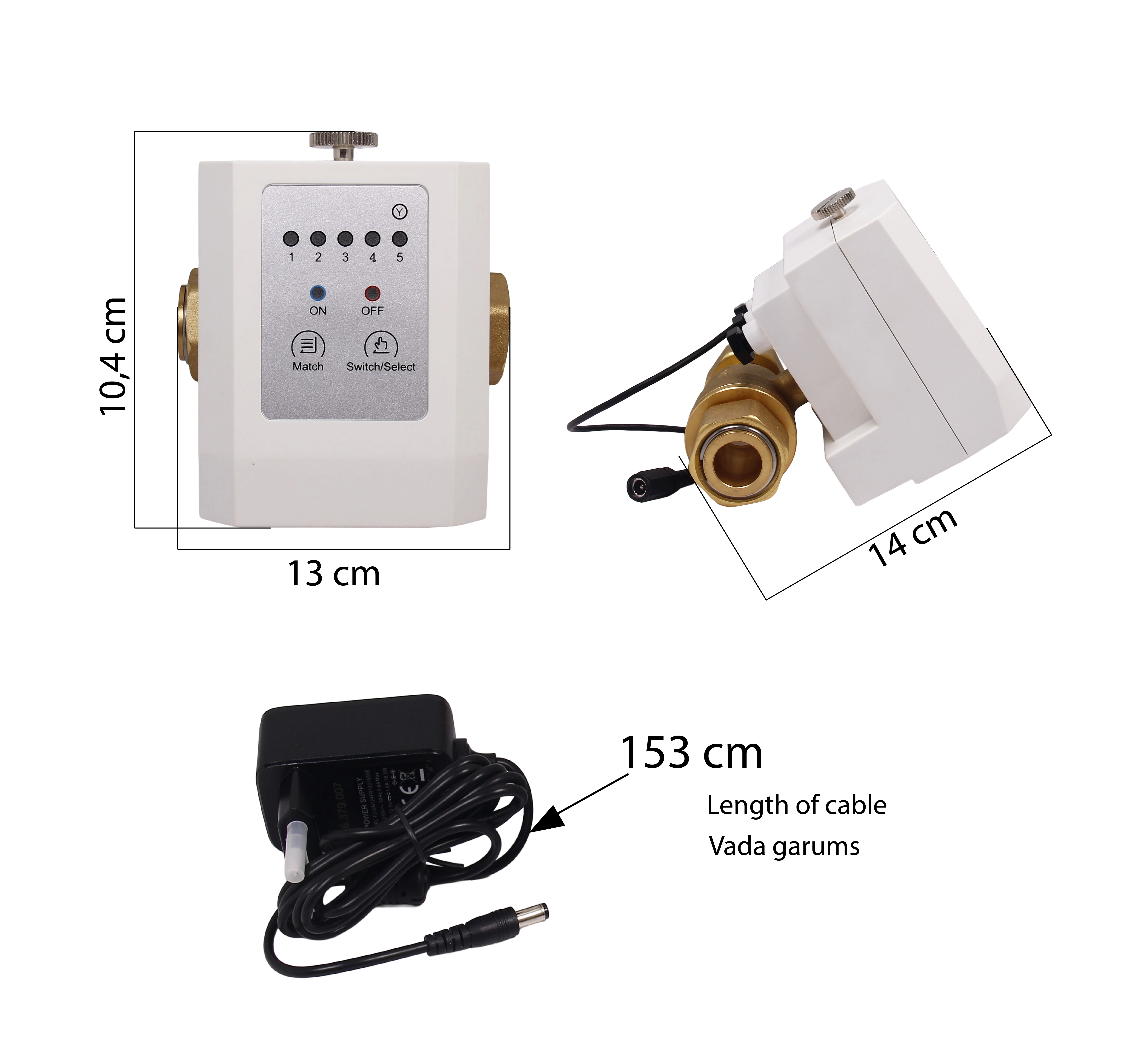

Width cm |
Height cm |
Length cm |
Weight kg |
|---|---|---|---|
|
15.80 |
14.00 |
25.50 |
1.50 |
Show full description
