WATEX WRO400 reverse osmosis system 400 lph

Manufacturer: WATEX

Product code: WRO0400

In stock:

Delivery time: 2-5 working days

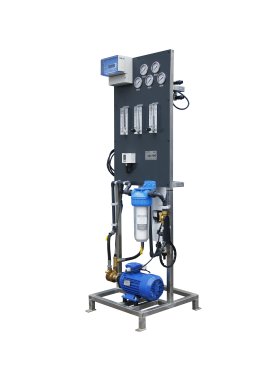

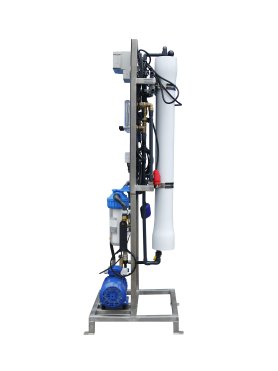

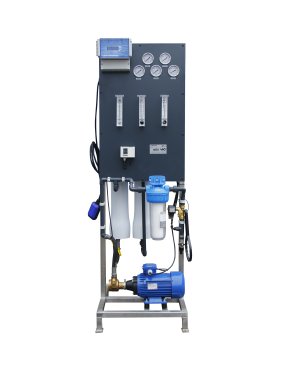

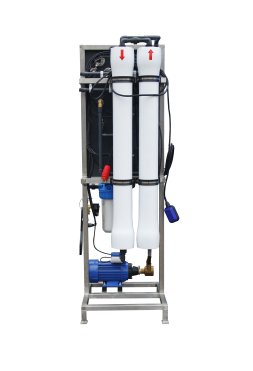

WATEX WRO400 reverse osmosis system

Advantages: compact, high quality, competitive price

Reverse osmosis system for brackish water with flow rate 400-500 liters/hour.

WATEX WRO series reverse osmosis systems are used for low mineralised water (up to 4000 ppm) with different flow rates and installation possibilities (wall or ground mount). Reverse osmosis valves purify water from 99.2% of salts, pyrogenic substances and microorganisms.

Permeate quality and flow rate depends on intake water salt concentration, temperature, applied pressure, membrane selection and pretreatment.

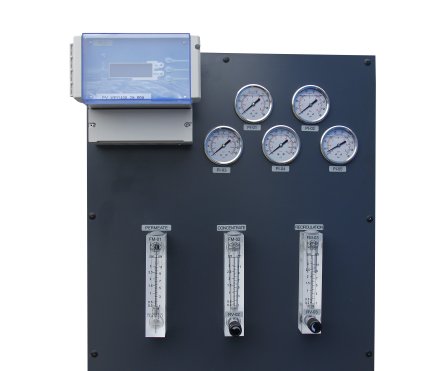

Quality and operation control system:

On-line conductivity meter 0-500 microS/cm
Inlet water low pressure switch
Permeate high pressure switch
Pressure indicators (inlet, after pump, concentrate)
Permeate flow meter
Concentrate drain flow regulation
Pump pressure regulation valve
Water leakage alarm and shut-off
High conductivity alarm
Automatic/manual flushing system
Recirculation/recovery regulation

Notes:

Data based on following parameters: 1500 mg/l NaCl solution at 10 bars, 25^oC, Salt rejection 99.2%, SDI<3 brackish and low-mineralized water
Pretreatment required: mechanical filtration, iron removal, softening or antiscalant dosing, adsorption by activated carbon if chlorine presence
Clean water reservoir minimum 200 liters and booster pump required after reverse osmosis system.

Optional features:

Antiskalant dosing system
PLC operating controller
Temperature switch
Stainless steel pipes and fittings (AISI304, AISI316)
Pretreatment built-in
Dry-run protection of the reverse osmosis pump

To receive quotation, please fill RO order form watex_wro_order_form.pdf and send it to: info@watex.eu

Show full description

Technical parameters	Unit	Model
Technical parameters	Unit	WATEX WRO400
Flow rate * Qnom	liters/hour	400-500
Flow rate * Qmax	liters/day	9600
Recovery max	%	70
Operating pressure max	bar	15
System size (Length x Height x Width)	cm	50 x 20 x 160
Power consumption	W	750
Element quantity x size		CSM RE4040-BLN x 2
Water - drain connection	inches	3/4'', 1/2'', 1/2''
Weight	kg	50
System frame	Stainless steel AISI304
High pressure pump	MWG
Quality control	Elactrical conductivity, alarm system
Control system	Pressure switches, manometers, flow meters, regulating valve
Piping system	PVC-U fittings and piping PN16
Inlet filter	PP 5 micron cartridge
