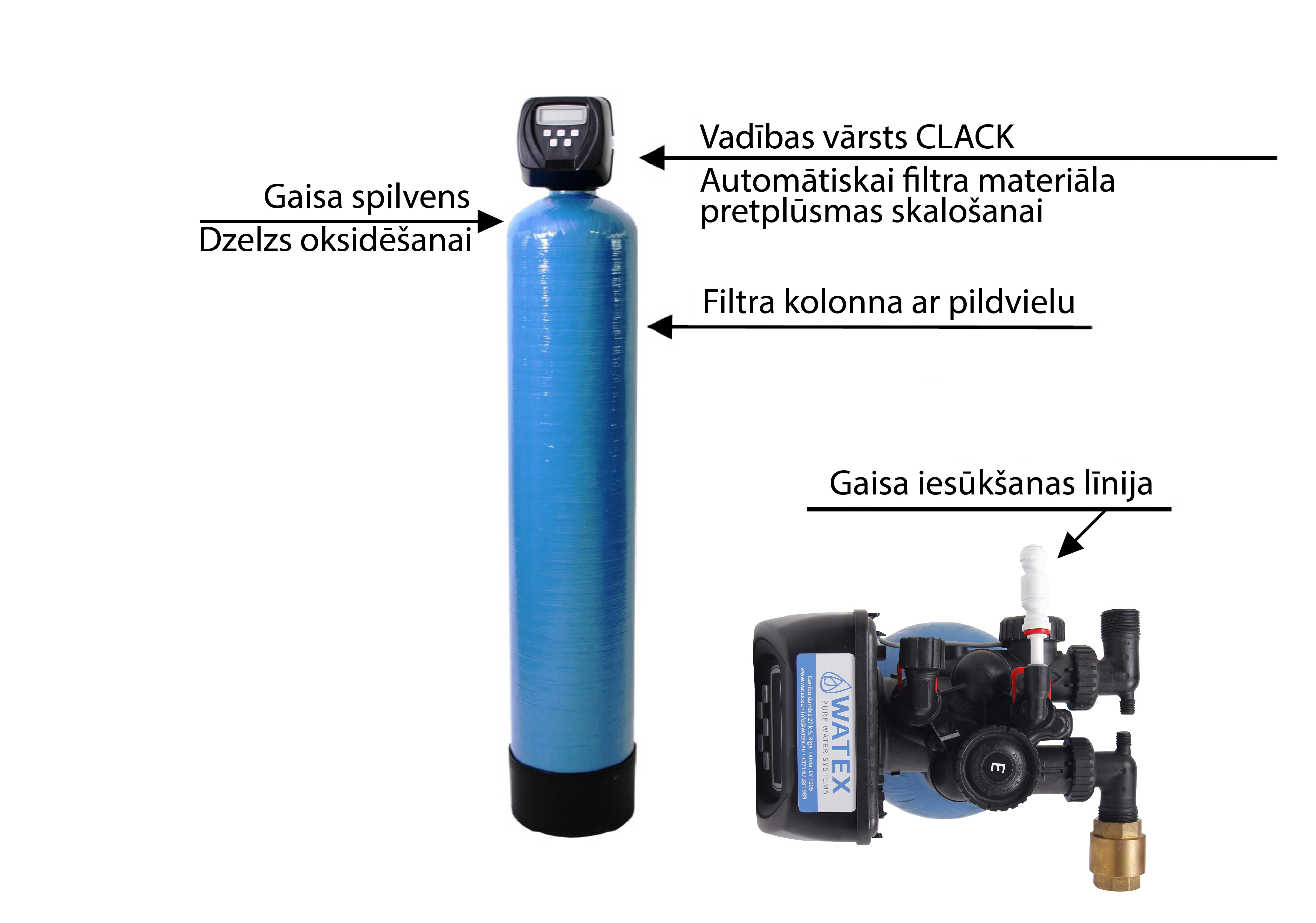

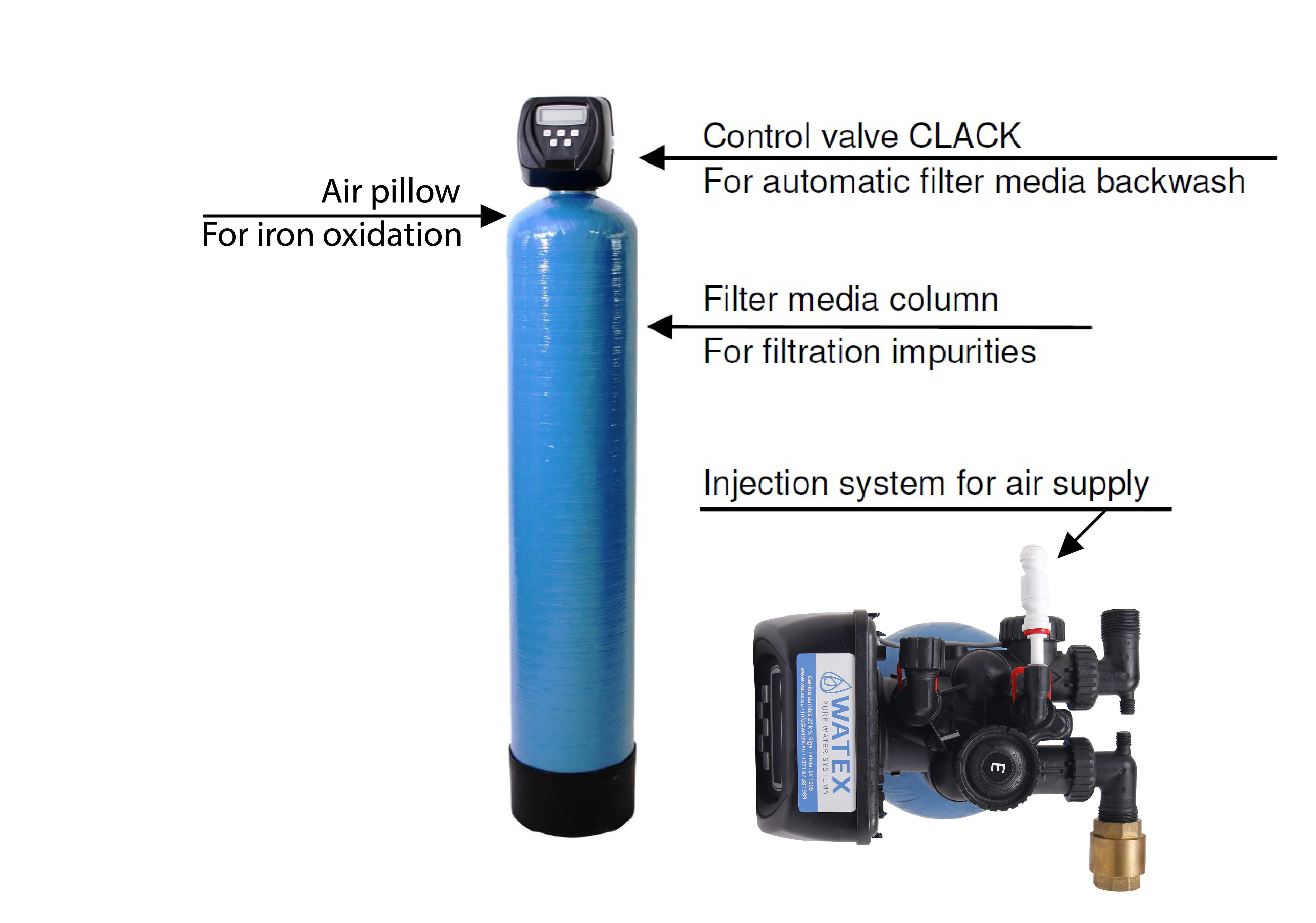

WATEX CMB13 is automatic water filter for water treatment that can filtrate iron, manganese, odour, turbidity and arsenic, without the use of any reagents. It is based on the oxidation and filtration method. WATEX CMB consists of filter tank, automatic control valve and filtration media. Due to air pillow in the tank, substances that are in water are oxidized and filtered. Filter need drain and electricity connection. Filter is designed for high flow rate and low pressure loss. Rinsing water can be directly discharged to biological wastewater treatment plant.
WATEX CMB13 is also used as a pre-filter for softener or organic removal filter, especially if the water has a specific smell.
Main advantages:

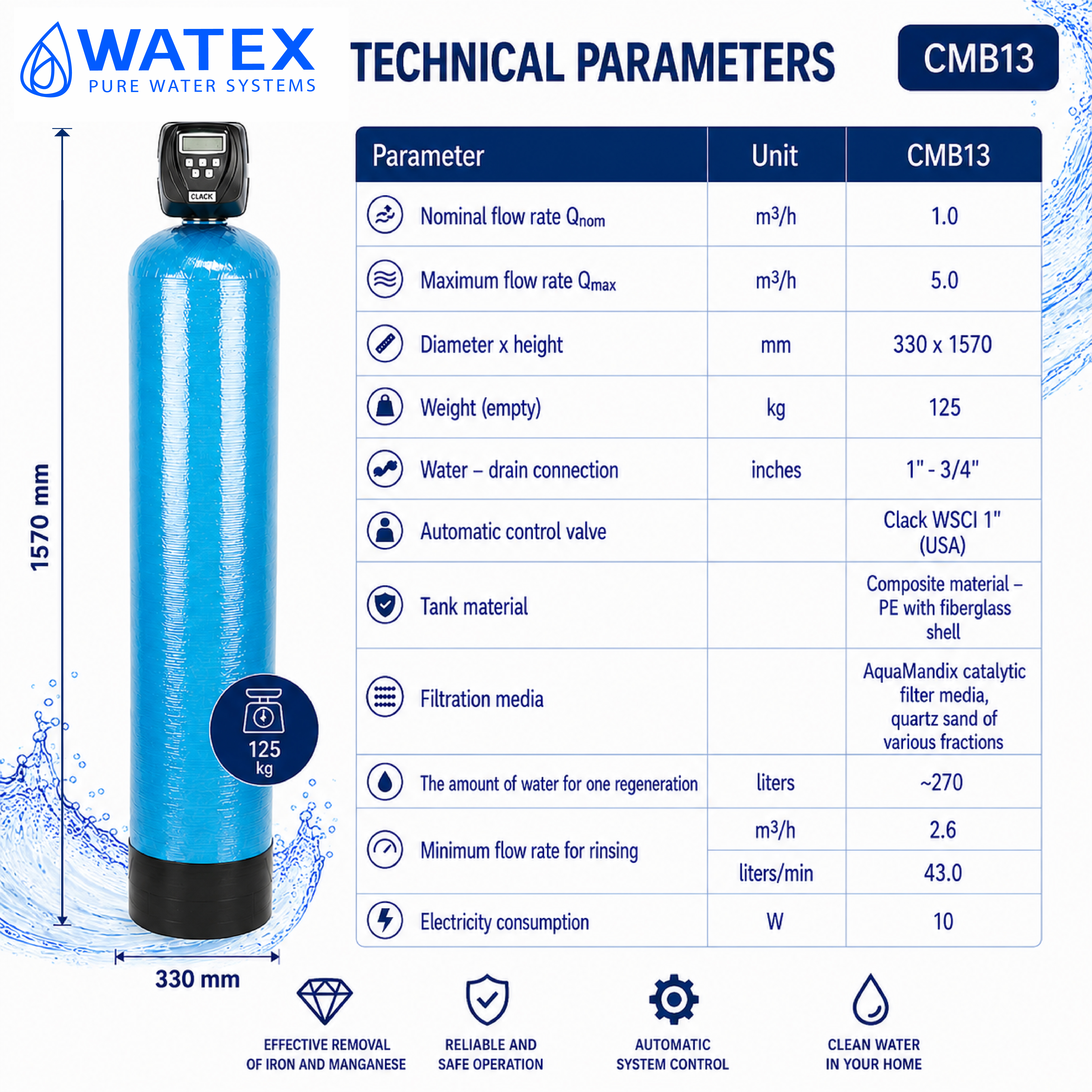

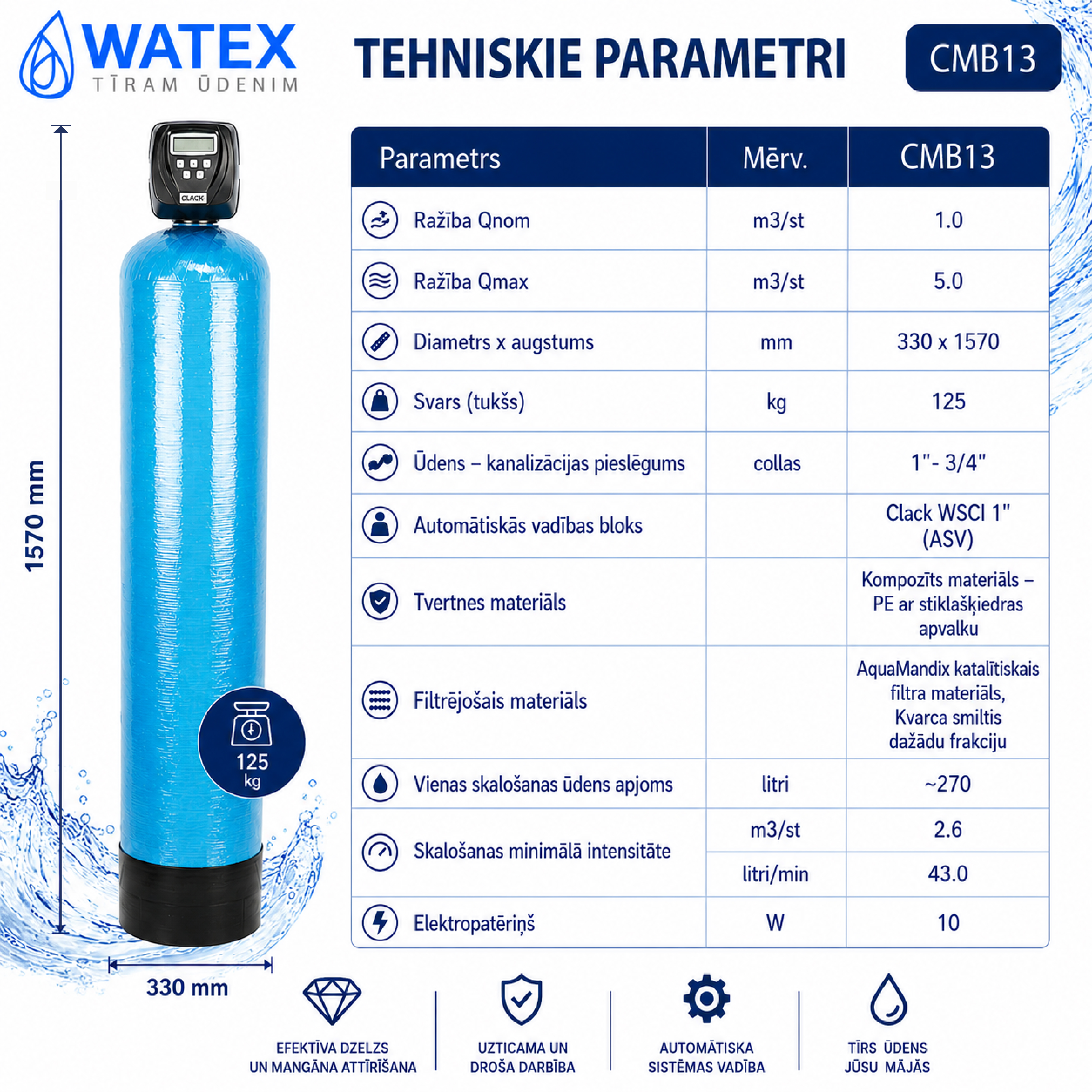

Technical parameters of filter |
Unit |
WATEX CMB13 |
Flow rate Qnom |
m3/h |
1.0 |
Flow rate Qmax |
m3/h |
5.0 |

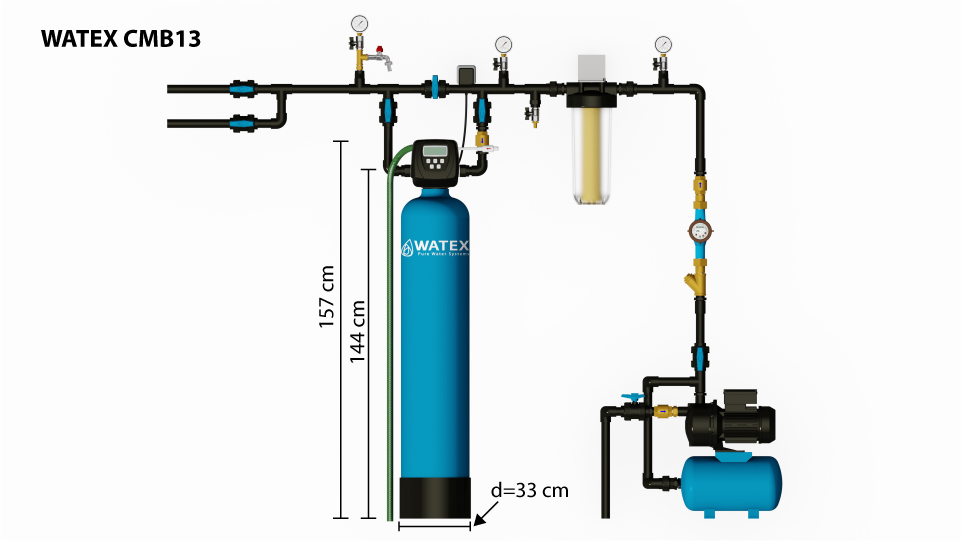

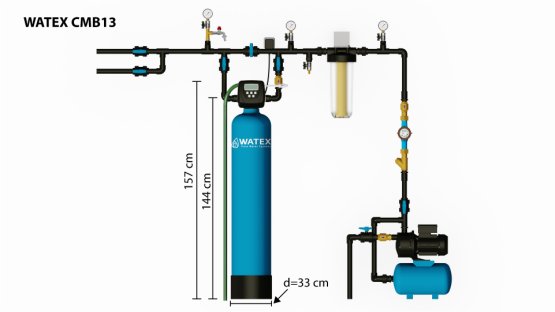

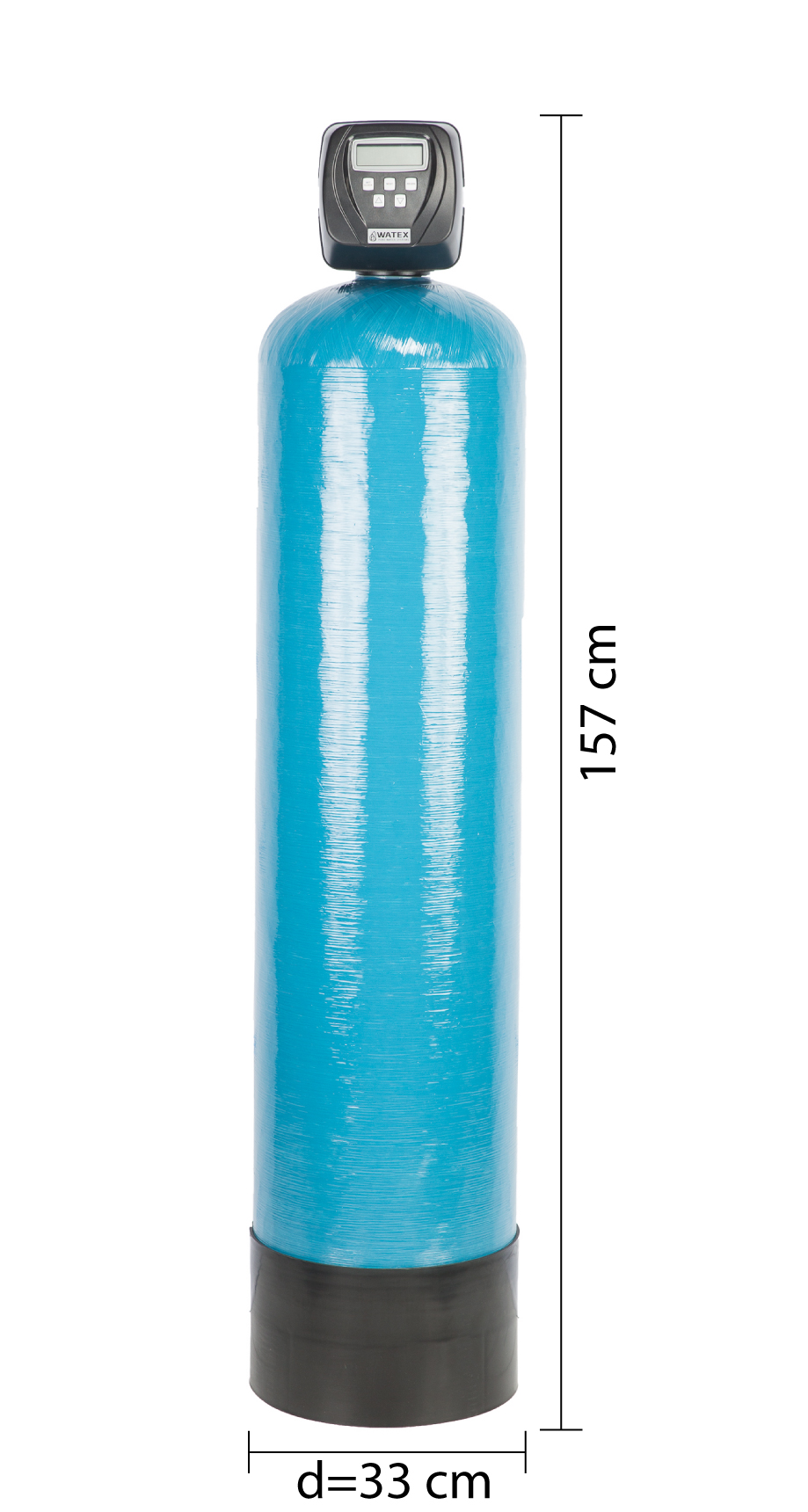

Diameter x height |
mm |
330 x 1570 |
Weight (empty) |
kg |
125 |
Water – drain connection |
inches |
1”- 3/4'' |
Automatic control valve |
|
Clack WSCl 1'' (USA) |
Tank material |
|
Composite material – inline PE with fiberglass outside coating |
Filtration media |
|
AquaMandix catalytic filter material, quartz sand of various fractions |
The amount of water for one regeneration |
liters |
~270 |
Minimum flow rate for rinsing |
m3/h |
2.6 |
|
liters/min |
43.0 |
Electricity consumption |
W |
10 |
Filter operating restrictions:
Max. oxidized iron (Fe3+) content |
15 mg/l |
Max. dissolved iron (Fe2+) content |
3 mg/l |
Max. oxidized manganese (Mn2+) content |
1 mg/l |
Max. hydrogen sulphide (H2S) content |
5 mg/l |
pH for iron (Fe2+) removal |
6.8-9.0 |
pH for manganese (Mn2+) removal |
8.0-9.0 |
Organic, humus substances, ammonia, chlorine, hardness salts and other contaminants does not adversely affect the filter performance, but reduces the lifetime. |
Requirements for normal work of equipment:
Additional equipment options:
Width cm |
Height cm |
Length cm |
Weight kg |
---|---|---|---|
40.00 |
160.00 |
40.00 |
115.70 |
By clicking on the following links, you can view and download the following:
Iron_removal_filter_WATEX_CMB13_technical_data_ENG.pdf
