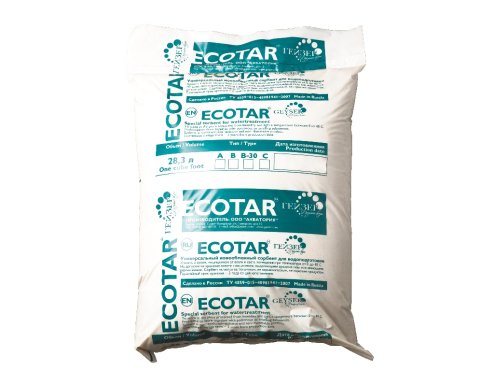

Ecotar-A (Ecotar-A BIO) is intended for removing dissolved iron, complex organoiron compounds, manganese, and hardness salts from water. It is recommended for the treatment of water from draw wells and low-depth bore wells. Visual evaluation of the initial water: water has a yellow-brown color and forms residual matter during water precipitation.
Ecotar-A BIO also decontaminates water alongside purification. This media includes specially prepared activated carbon additionally. Such carbon prevents bacterial (iron organisms) growth and foreign odors appearance.
Technical specifications:
|
Media exchange capacity, mg-ekv/l |
600 |
|
Working flow rate m/h |
10-20 |
|
pH range |
0-14 |
|
Bed height, mm, not less |
500 |
|
Free volume in column for media expansion at baskwash, % |
40 |
|
Flow rate at backwash, m/h |
6-10 |
|
Flow rate at brine cycle, m/h |
2-4 |
|
Flow rate at rinse, m/h |
10-20 |
|
Regenerating agent |
NaCl |
|
NaCl consumption, g/l resin |
100-150 |
Recomennded conditions for resins:
|
Limitations
|
Ecotar A |
|
Turbidity, max. ppm |
3 |
|
Iron*, max. ppm |
8 |
|
Manganese, max. ppm |
2 |
|
Hardness, max. mg-ekv/l |
10 |
|
Permanganate oxidizability, max. Mg O2/l |
10 |
|
Free chlorine, max. ppm |
0.1 |
|
Total salinity, max. mg/l |
2000 |
|
Hydrogen sulfide |
absence |
Main properties of resins
|
Bulk weight, kg/l |
0.84-0.98 |
|
Particle size range, mm |
0.25-5.0 |
|
Moisture content, % |
45-70 |
|
Package, liters |
28.3 |
