Dosing Pump DLX VFT/MBB 0810 230/240V CP-PVDF SF.C. Etatron D.S.

Manufacturer: ETATRON
Product code: PLX392285E
Combination does not exist
Do you have any questions?
Manufacturer: ETATRON
Product code: PLX392285E
Combination does not exist

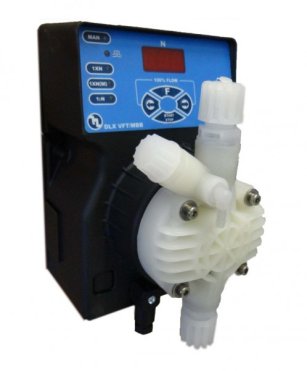

DLX VFT/MBB model consists of a series of metering pumps performing a proportional dosing via a contact water meter

The high reliability and the price competitiveness make the DLX series the best proposal in
dosing systems market. On request, DLXB (foot mounted) series can be supplied with a stroke
length control, which enables - by a dial - to adjust the dosing volume between 20-100%.



Show full description

Main features:

  •  Anti-acid plastic casing
  •  IP65 protection degree

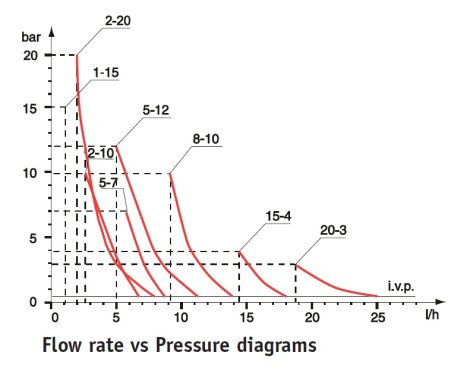

  •  Up to 20 l/h and 20 bar

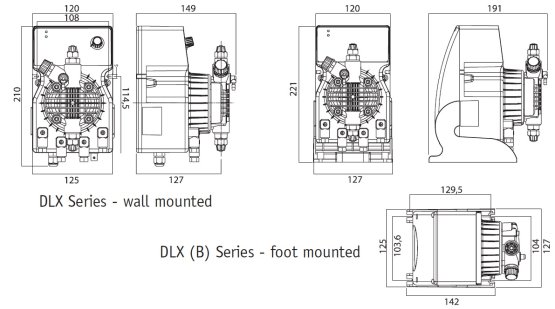

  •  Wall (DLX) and Foot mounted (DLXB):
  •  Standard pump head: PVDF body, PTFE diaphragm, ceramic balls, FPM sealings*
  •  Power Supply: 220-240V - 120V (on request)
  •  Strokes frequency: 120 strokes/min (from 1l/h to 15l/h) - 150 strokes/m (20 l/h)
  •  CE (standard) and CSA certied (on request)
  •  7 segments display

Operating functions:

  • Digital Manual flow rate adjustment from 0÷100%
  • Proportional dosing functions by reed water meter: 1xn; 1xn (m) 1:n;
  • Manual air bleed pump head; from 5 to 15l/h automatic air bleed available on request
  • Relay Output
  • Level switch connector

Weight kg

1.00
Show full description

By clicking on this link, you can view and download the following:

Certificate of Conformity DLX DLXB

DLX & DLX B MAAD data sheet

OPERATING INSTRUCTIONS AND MAINTENANCE
